Queue Implementation with Inheritance and Polymorphism

Following is the source code of simple queue implementation with the help of Inheritance and Polymorphism i.e. Late Binding.

In inheritance, a class (derived class) inherits the features i.e. methods and properties from the parent class (base class). Polymorphism occurs when multiple classes are inherited from each other. Here call to a member function (of the class) causes a different function to be executed (from the classes linked via inheritance) depending on the type of object that invokes the function.

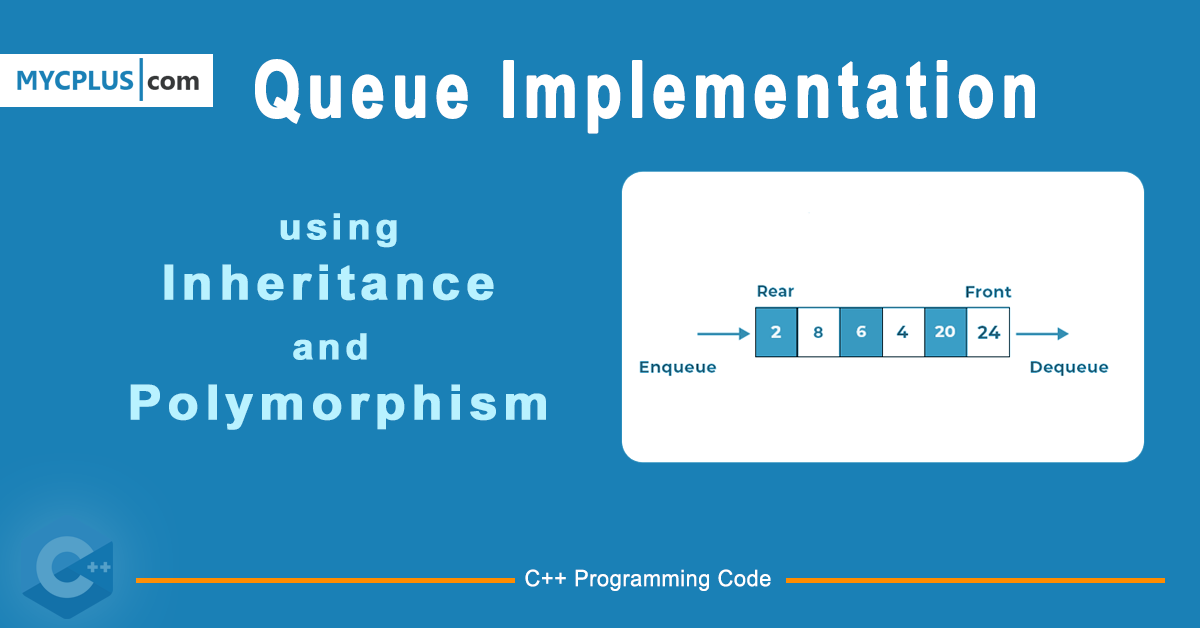

queue implementation C++

#include <dos.h>
#include <stdlib.h>
#include <iostream.h>
#include <conio.h>
#include <windows.h>

#define MAX 5  // MAXIMUM CONTENTS IN QUEUE

class task {
 public:
  virtual void dotask() {}
  task() {}
  int exists;
};

class notep : public task {
 public:
  notep() { exists = 1; }

  void dotask() { system("notepad"); }
};

class regt : public task {
 public:
  regt() { exists = 1; }

  void dotask() { system("regedit"); }
};

class winex : public task {
 public:
  winex() { exists = 1; }

  void dotask() { system("explorer"); }
};

class Bep : public task {
 public:
  Bep() { exists = 1; }

  void dotask() { cout << "\a"; }
};

class MsBox : public task {
 private:
  char* text;
  char* caption;
  int style;

 public:
  MsBox(char* ext, char* cap, int no) {
    text = ext;
    caption = cap;
    exists = 1;
    style = no;
  }

  void dotask() { MessageBox(0, text, caption, style); }
};

class queue {
 private:
  task* t[MAX];
  int al;
  int dl;

 public:
  int opt, opt1, a;
  char te[255], capt[40];

  queue() {
    dl = -1;
    al = -1;
  }

  void del() {
    task* tmp;
    if (dl == -1) {
      cout << "Queue is Empty";
      sleep(2);
    } else {
      t[dl]->exists = 0;
      for (int j = 0; j <= al; j++) {
        if ((j + 1) <= al) {
          tmp = t[j + 1];
          t[j] = tmp;
        } else {
          t[al]->exists = 0;
          al--;

          if (al == -1)
            dl = -1;
          else
            dl = 0;
        }
      }
    }
  }

  void menu() {
    clrscr();
    cout << "1) Add Task \n2)Execute Tasks\n3)Exit Program\n";
    // int opt;
    cin >> opt;
    switch (opt) {
      case 1:
        clrscr();
        cout << "1) Open Notepad\n";
        cout << "2) Open Explorer\n"
             << "3) Open Registry\n"
             << "4) Sound a Beep\n"
             << "5) MessageBox API\n"
             << "6) Back\n";

        cin >> opt1;
        if (opt1 != 6)
          add(opt1);
        break;

      case 2:
        if (al != -1 && dl != -1) {
          for (int k = 0; k <= al; k++) {
            if (t[k]->exists == 1)
              t[k]->dotask();
            t[k]->exists = 0;
          }
          al = dl = -1;
        } else {
          cout << "Queue is Empty";
          sleep(3);
        }
        break;

      case 3:
        exit(0);
        break;
    }
  }

  void add(int item) {
    if (dl == -1 && al == -1) {
      dl++;
      al++;
    } else {
      al++;
      if (al < max) {
      } else {
        cout << "Queue is Full\n";
        al--;
        sleep(3);
        return;
      }
    }
    switch (item) {
      case 1:
        t[al] = new notep;
        break;

      case 2:
        t[al] = new winex;
        break;

      case 3:
        t[al] = new regt;
        break;

      case 4:
        t[al] = new Bep;
        break;

      case 5:
        cout << "\n Enter Style Number:";
        cin >> a;
        t[al] = new MsBox("Task Performed.", "Queue Implementation", a);
        break;

      default:
        cout << "Programming Error";  // No Possibility of this executing
    };
  }
};

void main() {
  queue a;
  while (1) {
    a.menu();
  }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

#include <dos.h>

#include <stdlib.h>

#include <iostream.h>

#include <conio.h>

#include <windows.h>

#define MAX 5 // MAXIMUM CONTENTS IN QUEUE

class task {

public:

virtual void dotask() {}

task() {}

int exists;

};

class notep : public task {

public:

notep() { exists = 1; }

void dotask() { system("notepad"); }

};

class regt : public task {

public:

regt() { exists = 1; }

void dotask() { system("regedit"); }

};

class winex : public task {

public:

winex() { exists = 1; }

void dotask() { system("explorer"); }

};

class Bep : public task {

public:

Bep() { exists = 1; }

void dotask() { cout << "\a"; }

};

class MsBox : public task {

private:

char* text;

char* caption;

int style;

public:

MsBox(char* ext, char* cap, int no) {

text = ext;

caption = cap;

exists = 1;

style = no;

}

void dotask() { MessageBox(0, text, caption, style); }

};

class queue {

private:

task* t[MAX];

int al;

int dl;

public:

int opt, opt1, a;

char te[255], capt[40];

queue() {

dl = -1;

al = -1;

}

void del() {

task* tmp;

if (dl == -1) {

cout << "Queue is Empty";

sleep(2);

} else {

t[dl]->exists = 0;

for (int j = 0; j <= al; j++) {

if ((j + 1) <= al) {

tmp = t[j + 1];

t[j] = tmp;

} else {

t[al]->exists = 0;

al--;

if (al == -1)

dl = -1;

else

dl = 0;

}

void menu() {

clrscr();

cout << "1) Add Task \n2)Execute Tasks\n3)Exit Program\n";

// int opt;

cin >> opt;

switch (opt) {

case 1:

clrscr();

cout << "1) Open Notepad\n";

cout << "2) Open Explorer\n"

<< "3) Open Registry\n"

<< "4) Sound a Beep\n"

<< "5) MessageBox API\n"

<< "6) Back\n";

cin >> opt1;

if (opt1 != 6)

add(opt1);

break;

case 2:

if (al != -1 && dl != -1) {

for (int k = 0; k <= al; k++) {

if (t[k]->exists == 1)

t[k]->dotask();

t[k]->exists = 0;

}

al = dl = -1;

} else {

cout << "Queue is Empty";

sleep(3);

}

break;

case 3:

exit(0);

break;

}

void add(int item) {

if (dl == -1 && al == -1) {

dl++;

al++;

} else {

al++;

if (al < max) {

} else {

cout << "Queue is Full\n";

al--;

sleep(3);

return;

}

switch (item) {

case 1:

t[al] = new notep;

break;

case 2:

t[al] = new winex;

break;

case 3:

t[al] = new regt;

break;

case 4:

t[al] = new Bep;

break;

case 5:

cout << "\n Enter Style Number:";

cin >> a;

t[al] = new MsBox("Task Performed.", "Queue Implementation", a);

break;

default:

cout << "Programming Error"; // No Possibility of this executing

};

}

};

void main() {

queue a;

while (1) {

a.menu();

}
